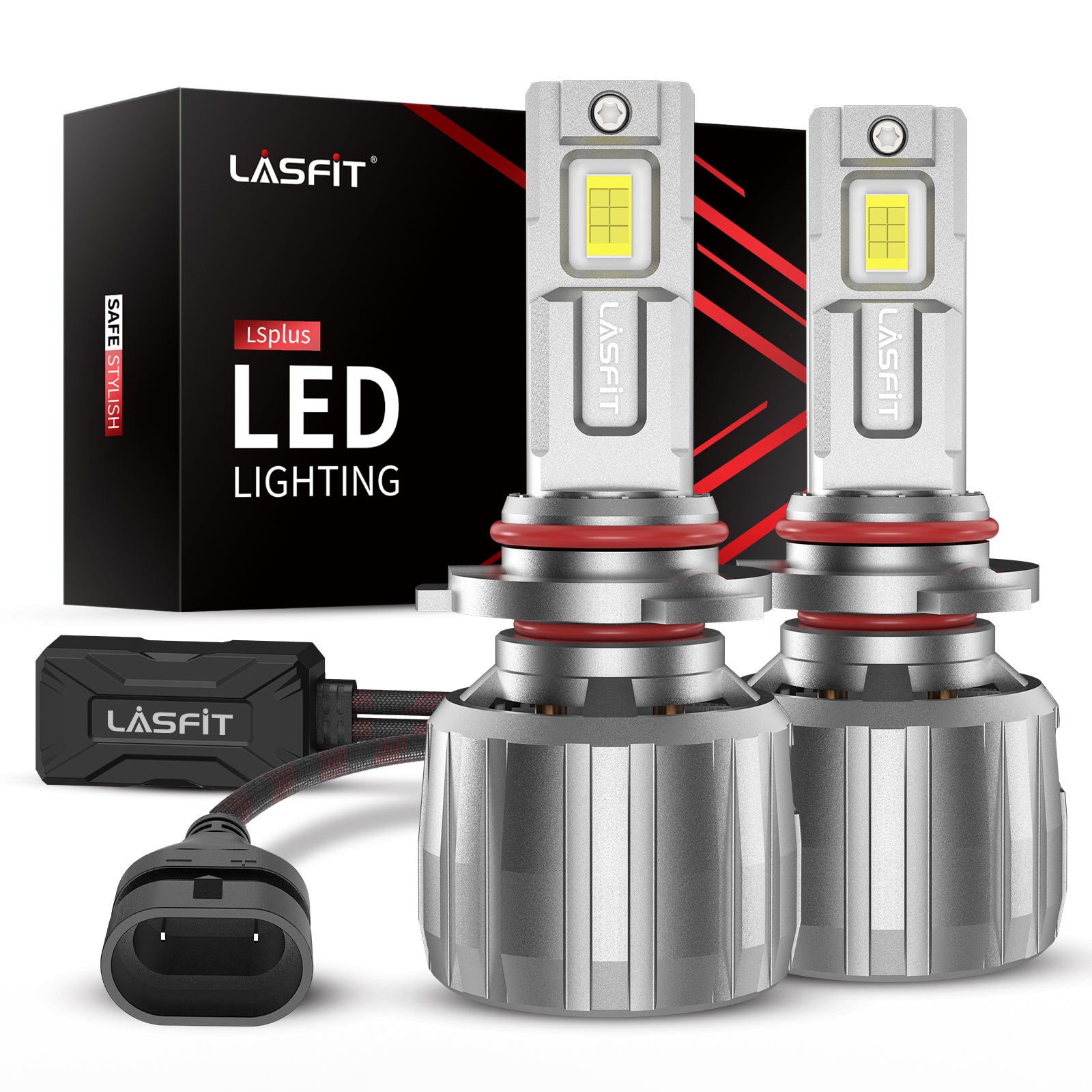

The Brightest 9005 LED Headlight Bulbs | Lasfit 4th Gen LS Plus Series
LASFIT’s newly upgraded 4th Gen LSplus Series represents the pinnacle of 9005 LED headlight technology, delivering unmatched brightness and reliability. These bright 9005 headlight bulbs produce an impressive 6500LM per bulb – making them the brightest 9005 LED bulb option available for enhanced safety on dark highways and challenging terrain.
As the best 9005 LED headlight bulbs in our class, they combine extreme luminosity with intelligent engineering, ensuring optimal performance across all driving conditions.
Important Notice: For some specific vehicle models, if the OEM halogen 9005 bulbs work as high beam and daytime running light. After installing LED bulbs, the daytime running light/DRL may flicker or can’t turn on. If you do mind these issues on DRL, please don’t buy the LED 9005 bulb.
Why Are LS Plus the Brightest 9005 LED Headlight Bulbs?
Oversized High-Output LED Chips
Brightness is directly related to the light-emitting surface and LED size. Each LS Plus 9005 bulb uses six 4575 chips (66×66 MIL)—large-format, high-intensity emitters capable of generating exceptional light output.

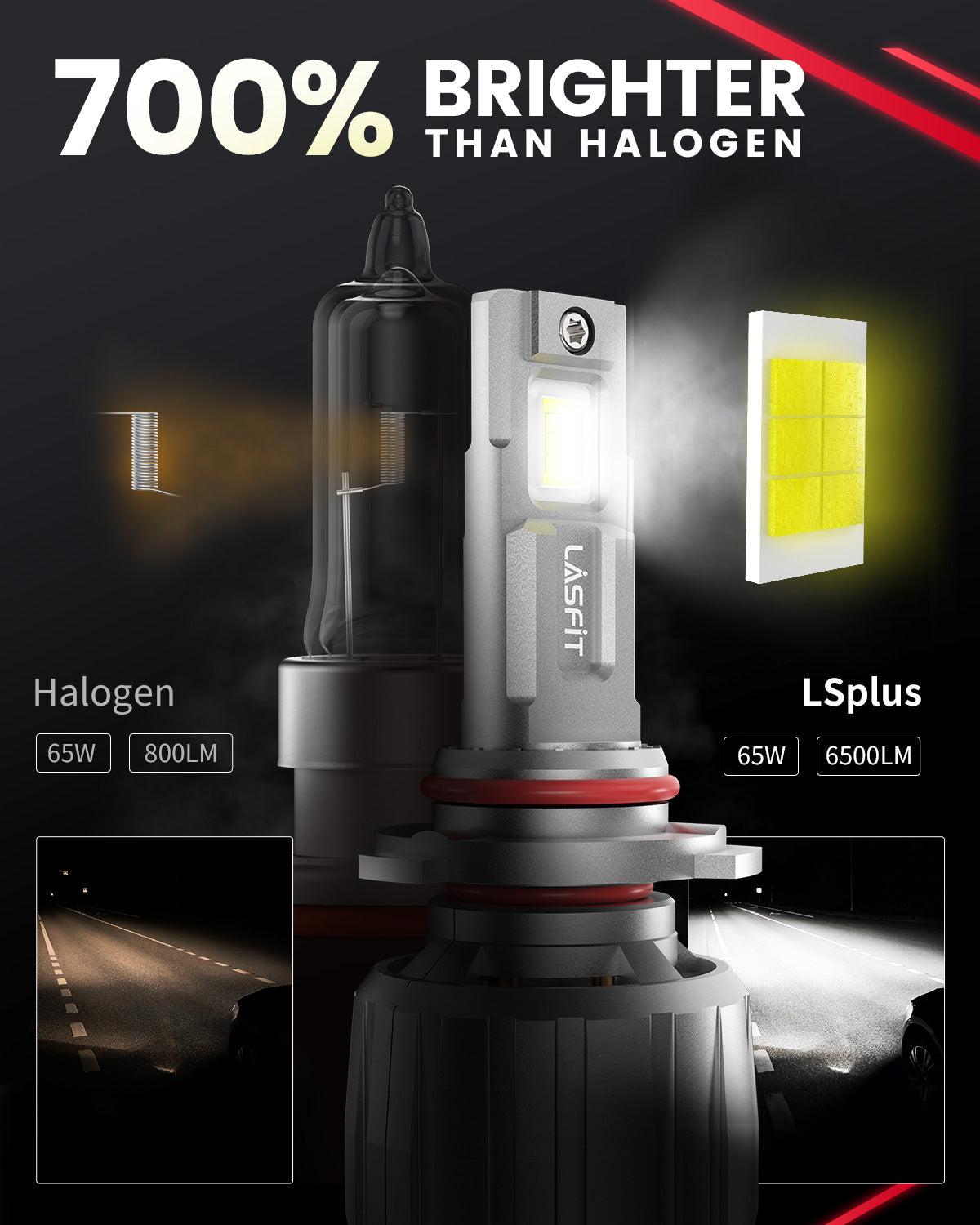

Many customers ask about the LS Plus lux performance. In a real-world 25-foot lux test, results showed:
- Halogen: 99.1 lux
- LS Plus: 807.4 lux
That’s nearly 800% brighter than stock halogen—one of the main reasons LS Plus dominates the market for the brightest 9005 LED bulbs.
6000K+ Cool White Color Temperature
Tested in a professional integrating sphere, LS Plus 9005 bulbs deliver a 6000K+ clean white beam with a Duv of only 0.0028 (ideal range: 0.0010–0.0060).This means:
- No green or purple tint
- Visually pure white light
- Enhanced nighttime clarity
The beam color is optimized for comfort and maximum visibility.
Ultra-High Power & Lumen Output
The 4th-gen LS Plus Series is engineered for efficiency—producing 100+ lumens per watt.
Each bulb delivers:
- 65W of measured power
- 6500 lumens of brightness
This level of output places LS Plus firmly among the brightest 9005 LED headlight bulbs available today.
Perfect Beam Pattern
LS Plus 9005 bulbs include a 360° adjustable collar. If the LED chips aren’t aligned horizontally (3 o’clock to 9 o’clock), you can：
- Push and rotate the bulb to adjust, or
- Remove the bulb and rotate the mounting collar
This ensures a focused, glare-free beam pattern that mimics the OEM filament position.
Why the Brightest 9005 LED Bulbs Also Have Exceptional Cooling
Dual Heat Pipe Design
A single heat pipe rapidly transfers heat away from the LEDs—but LS Plus uses dual heat pipes, doubling the thermal conductivity. This drastically improves performance at high brightness levels.
Aluminum Body, Internal Heat Sink, and Ball-Bearing Fan
LS Plus uses a full aircraft-grade aluminum housing paired with an internal aluminum finned heat sink. With the addition of a 1.18-inch, 15,000 RPM ball-bearing fan, the system efficiently pulls heat out of the bulb and maintains stable brightness.
External Driver for More Stability
The external driver helps:
- Prevent hyper-flash issues
- Reduce radio or backup-camera interference
- Improve decoding performance
- Separate LED heat from driver heat, extending lifespan
This design allows LS Plus to maintain maximum brightness with long-term stability.
How to Install LS Plus 9005 LED Headlight Bulbs
Install your bulbs in just four simple steps:
- 1. Disconnect the plug and remove the halogen bulb.
- 2. Insert the LS Plus bulb into the correct slot.
- 3. Place the bulb into the housing and lock it in.
- 4. Connect the power harness.
Notice:
After installation, ensure the LED chips are aligned horizontally (3 o’clock – 9 o’clock).
LSplus LED Headlight Bulbs vs LA Series & Halogen
